Using Entity Frameworks to Simplify Data Access

Introduction

Microsoft Entity Framework (EF) is an object-relational mapper (ORM) based on ADO.NET, and is a set of technologies that support the development of data-oriented software applications. As a replacement to Linq-to-SQL, EF enables developers to work with data in the form of domain-specific objects and properties, such as students and student grades, without having to concern themselves with the underlying database tables and columns where the data is stored. Using EF, developers can work at a higher level of abstraction when they deal with data, and can create and maintain data-oriented applications with less code than in traditional applications.

EF provides a mechanism to simplify data access. EF also eliminates the need for most of the data-access code that developers usually need to write.

This blog will demonstrate the ease of using EF to work with data by showing how to create an Entity Frameworks Data Model as well as providing concrete examples of using EF in a real-world application.

Create Entity Frameworks Data Model

An application generally utilizes a Data Model to describe the data that it will be using. The following example will use the Data Base First approach. This means that the Data Model will be defined from an existing database.

Given an existing project created from Microsoft Visual Studio 2013, the developer would first create an ADO.NET Entity dData model by electing to “Add New Item” to his project from Solution Explorer.

This would bring up the following screen where he chooses to add an ADO.NET Entity Data Model. (See figure 1 below)

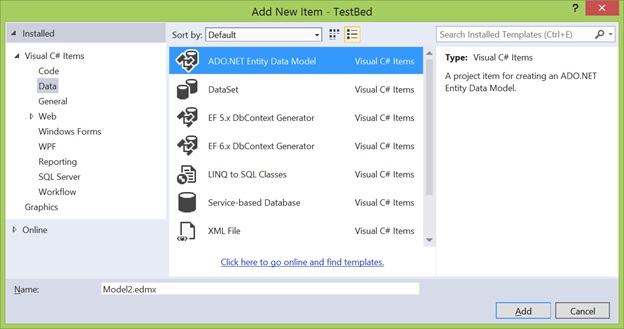

 Figure 1: Add ADO.NET Entity Data Model

He would then go through steps to select a model by generating it through a Data Base. (See figure 2 below)

Figure 2: Select Generate from Database Option

Next, select the Data Connection and name the Entity, in this case MyEntities. (See figure 3 below)

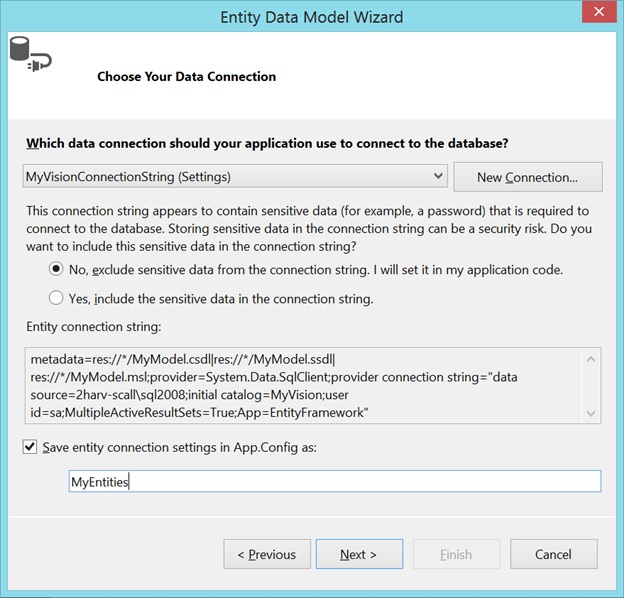

Figure 3: Create Database Connection

Then Select Entities to include in Model. In this case tables Bid, BidItem and BidItemMaterial. (See figure 4 below)

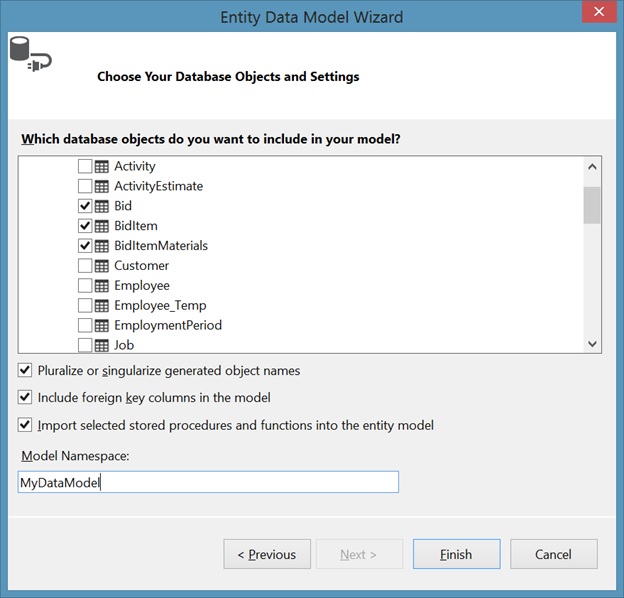

Figure 4: Select Entities to include in Model

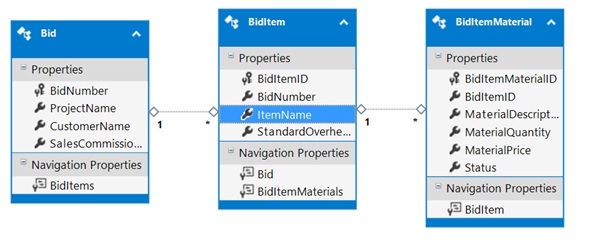

The Data Model generated from the steps above, which includes a hierarchy of entities, is shown below. In figure 5, the model consists of a Bid (Bid Table). The Bid contains one (1) or more Bid Items (BidItem Table) and the Bid Item contains one or more Materials (BidItemMaterial Table).

Concrete Examples of using Entity Frameworks

The following shows several examples of using EF in C# code.

Create access to the database
MyEntities _context = new MyEntities();

Get all Bids
List<Bid> _bidList = _context.Bids.ToList();

Get a the bid having a bidNumber of 1
Bid MyBid = (Bid)context.Bids.FirstOrDefault(c => c.BidNumber == 1);

Update a form with data from a specific bid
bidBindingSource = new System.Windows.Forms.BindingSource( );
bidBindingSource.DataSource = _bidList.FirstOrDefault(c => c.BidNumber == _selectedBid.BidNumber).ToList();

A form having controls bound to the bidBindingSource would be updated accordingly.

Get a list of all materials having a specific BidItemId
List<BidItemMaterial> _materialList =
_context.BidItemMaterials.Where(c => c.BidItemID == _selectedItem.BidItemID).ToList();

Save Changes made to data bound to control
_context.SaveChanges();

Conclusion

From the examples above, one can see the power and ease of using Entity Frameworks for data base access.
